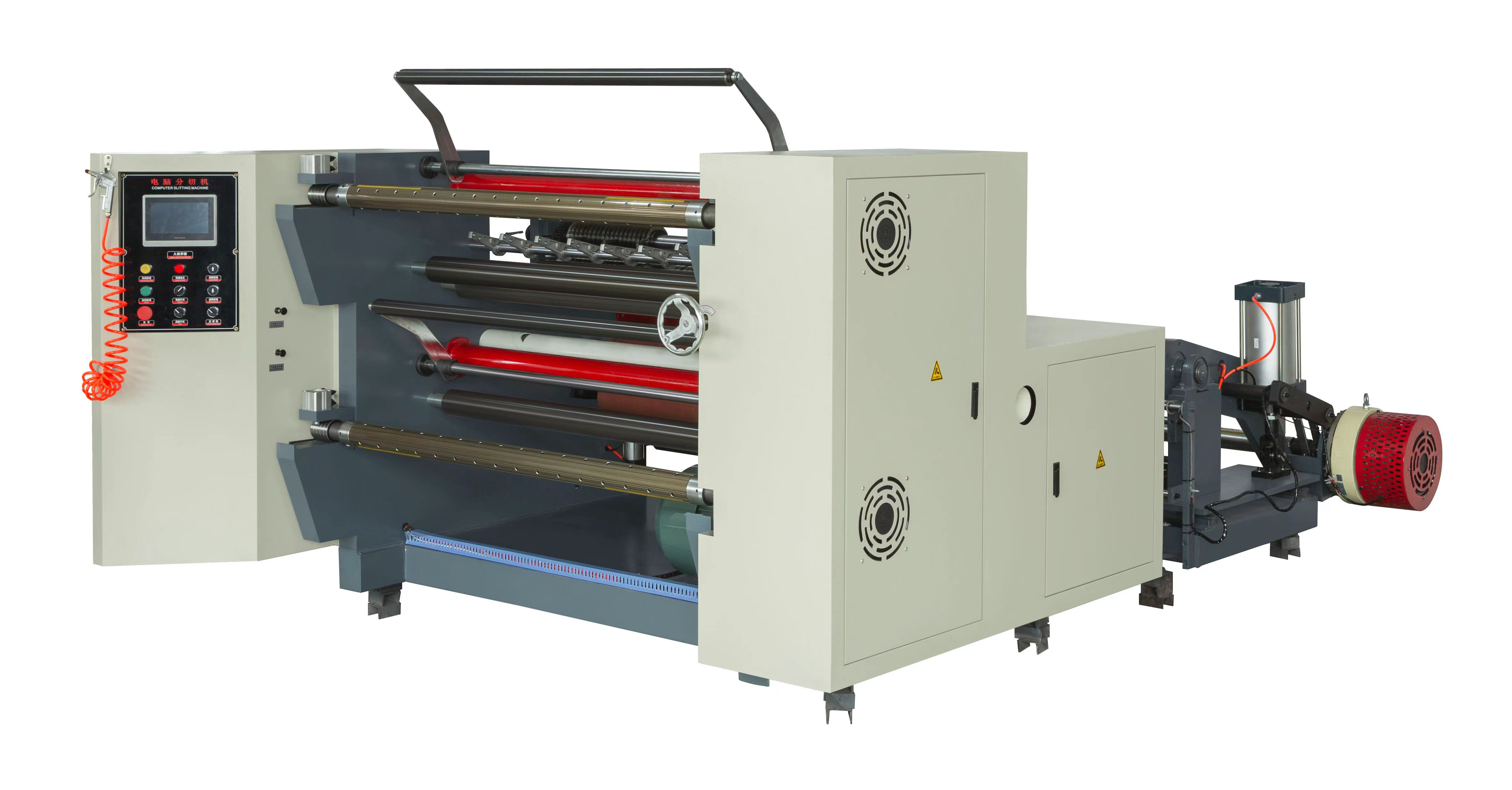

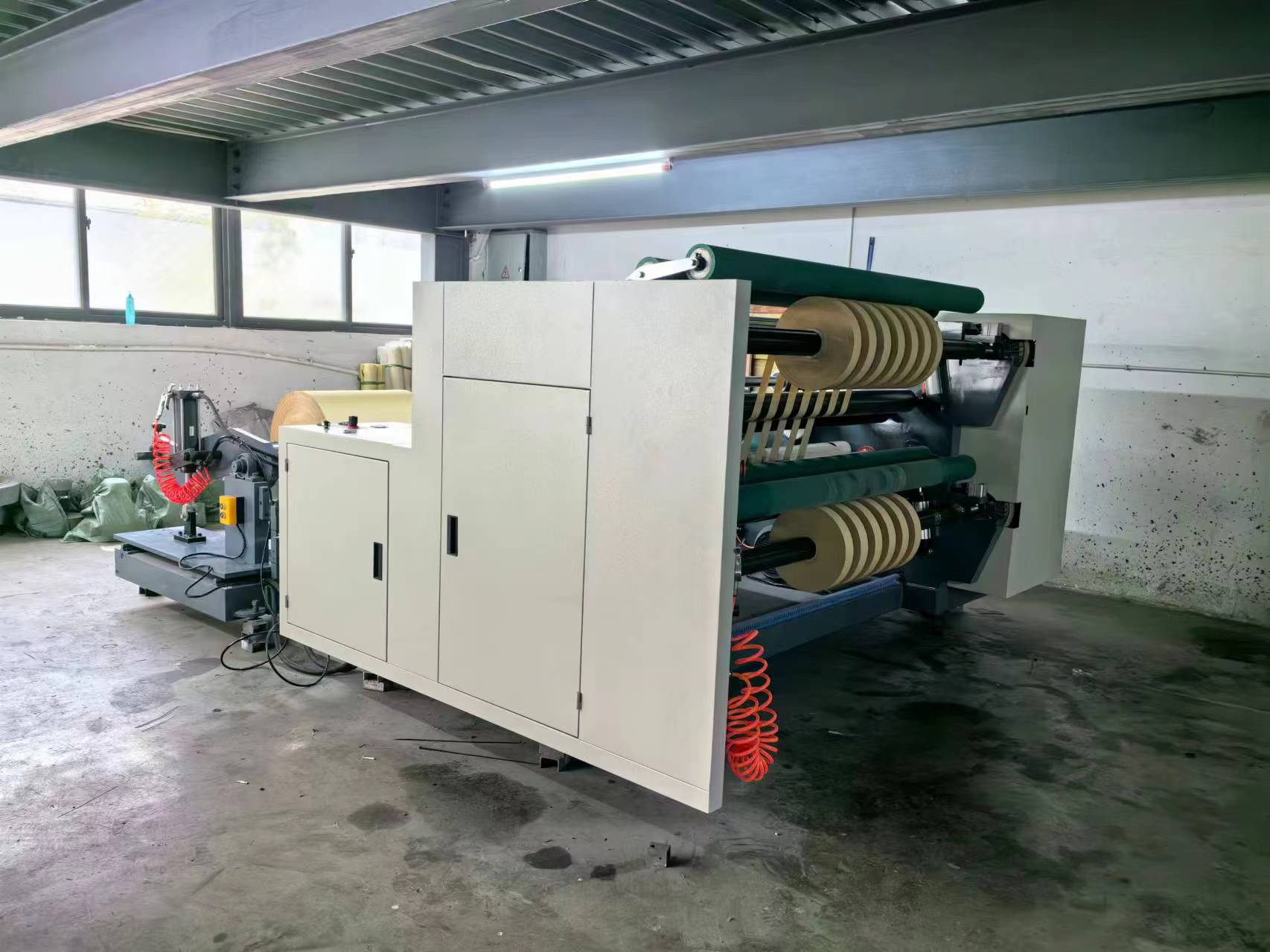

WFQ-1100/1300/1600A Computer Horizontal Type Slitting Rewinder Machine

Categories: Slitting Rewinder Machine

suitable for slitting PP, OPP,BOPP, PVC, PET, paper, nonwoven fabric roll to roll.

Tel: 0086 577-66817170

Mobile: 0086 15858567170

Email: rahsjx@rahsjx.com

Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.

CATALOGUE >

Product Details :

Application
This machine is suitable for separating and cutting such various roll materials as BOPP, PET,

CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material

according to different requirements during production.

Feature
1. This machine install a round knife device, it can slit the rolls paper within 350g/ ㎡.

2. Independent master control screen, more flexible and even easier operation.

3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent

material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.

Main Technical Specification

Model	WFQ-1100A	WFQ-1300A	WFQ-1600A
Suitable material	Fabric, PP, BOPP, Paper, PE, aluminum foil,etc
Max. Unwind diameter	1000mm	1000mm	1000mm
Max. Unwind width	1100mm	1300mm	1600mm
Unwind paper core	76mm	76mm	76mm
Slitting width	25-1200mm	25-1300mm	25-1600mm
Machine speed	160m/min	160m/min	160m/min
Slitting speed	150m/min	150m/min	150m/min
Rewind diameter	600mm	600mm	600mm
Main motor	3.5kw	4kw	5.5kw
Cutting precision	±0.5mm	±0.5mm	±0.5mm
Total power	7.5kw	9kw	9kw
Gross weight	2000kg	2500kg	3000kg
Dimension	3.3×2.4×1.6m	3.3×2.6×1.6m	3.5×2.6×1.6m
