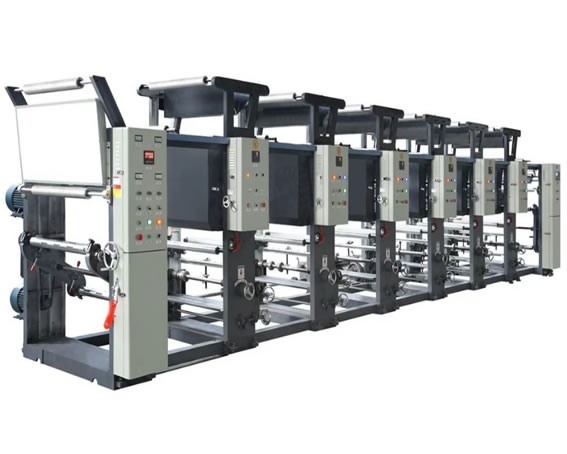

ASY-A Series Normal Speed Gravure Printing Machine
| ASY-A Series Normal Speed Gravure Printing Machine |
| Categories: Printing Machine Series |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
1.1 It adopts combination type, the printing can be finished on time continuously with single-double-side many colors.
1.2 Unwinding and rewinding tension magnetic control system.Ink automatic cycle.
1.3 Far infrared heating with drying system with single drying-channel is available for drying film.
1.4 Differential gear is adopted with plates free adjusted with 360.
1.5 Pressure height and parallelism of ink blade are adjustable at will, and it can transversely reciprocate
with main machine too.
1.6 It adopts turnover double station rolling and releasing structure, receiving and replacing material
without stopping the machine.
1.7 Suitable for rolling plastic film, OPP, nonwoven cloth, PVC, paper, aluminum foil, etc.
2. Main Technical Specification
Model
ASY-A600
ASY-A800
ASY-A1000
Effective print width
600mm
800mm
1000mm
Max. unwind width
620mm
820mm
1020mm
Max. print speed
50m/min
50m/min
50m/min
Max. rewind diameter
ф600mm
ф600mm
ф600mm
Print plate diameter
70～390mm
70～390mm
70～390mm
Register precision
±0.25mm
±0.25mm
±0.25mm
Heating power
3.5kw
4.5kw
5.5kw
Machine weight
1500kg
1800 kg
2000 kg
Dimension
2.8×1.2×1.7m
2.8×1.4×1.7m
2.8×1.6×1.7m
-
