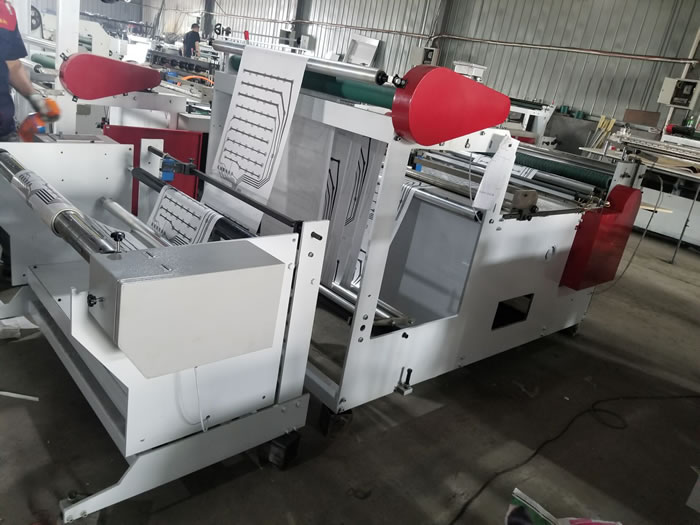

HQ-500-2000A Series Computer Normal Speed Cross Cutting Machine
| HQ-500-2000A Series Computer Normal Speed Cross Cutting Machine |
| Categories: Cutting Machine Series |
| suitable cross cutting plastic roll, paper roll, nonwoven fabric,pp woven fabric, glass paper, etc into sheet. |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
1)It is suitable for transversely cut the roll material like paper, film printed compound.
2)With computer control, DC speed adjustment, automatic length setting, automatic correction system,
automatic counting, signal alarm, photoelectrical trace and so on.
3)Magnetic powder clutch control the rewind tension, pneumatic automatic feeding.
4)The machine is compact construction, nice design and high robotization, is the good equipment for the roll printed materials
to cut.
2.Main specification:
|
Model |
HQ—1000A |
HQ—1200A |
HQ-1500A |
|
Feeding width |
1050mm |
1150mm |
1500mm |
|
Feed diameter |
￠600mm |
￠600mm |
￠600mm |
|
Cutting width |
950mm |
1150mm |
1450mm |
|
Cutting length |
50-1200mm |
50-1200mm |
50-1200mm |
|
Thickness |
Plastic: 0.1mm-0.5mm Paper: 75g-450g |
||
|
Precision |
±0.3mm |
±0.3mm |
±0.3mm |
|
Cutting speed |
10—120pcs/min |
10—120pcs/min |
10-120pcs/min |
|
Power |
5.5kw |
7.5kw |
9.5kw |
|
Voltage |
220V,50HZ |
220V/50HZ |
220V,50HZ |
|
Gross weight |
1200kg |
1500kg |
1800kg |
|
Install dimension |
3.5×1.3×1.5m |
3.5×1.5×1.5m |
3.5×1.7×1.5m |
-
