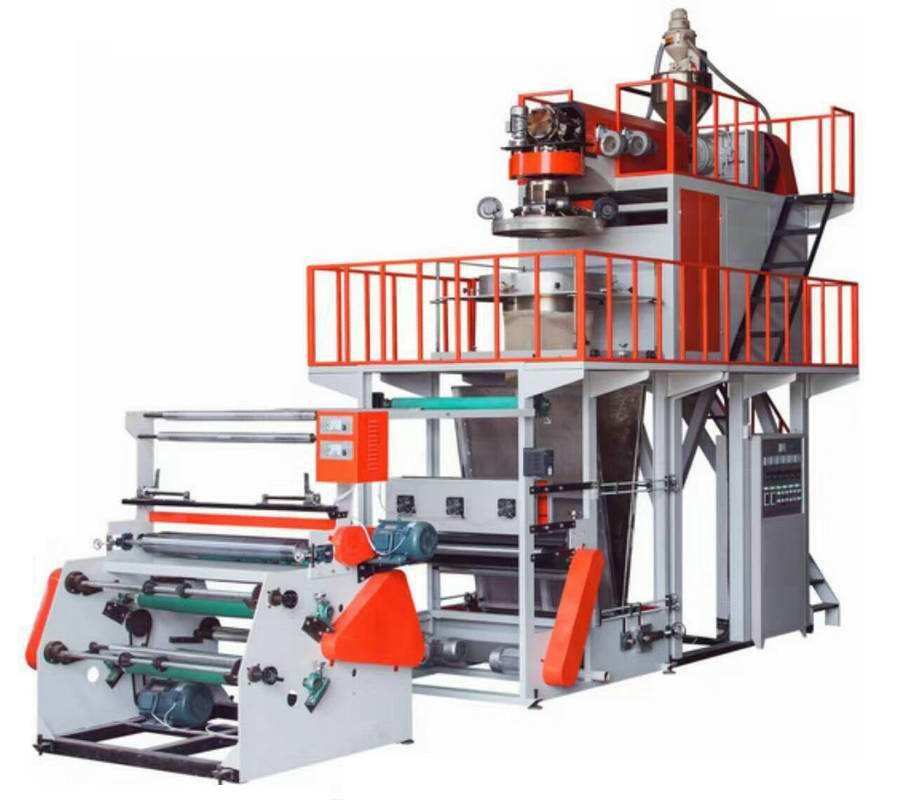

SJ50/55/65 Rotary die Exrusion PP Film Blowing Machine
| SJ50/55/65 Rotary die Exrusion PP Film Blowing Machine |
| Categories: PE Film Blowing Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1. Feature:
1)Used for blowing PP film.
2)The cylinder and the screw of extruder are made of high quality alloy steel that processed by nitrogen treatment.
3)Blowing type: bottom blowing method.
4)The rewinder adopts torque motor.
5)Widely used for packing food, cloth, textile, commodity, industrial products, etc.
2. Main Technical Specification
|
Model |
SJ55-FM-700 |
SJ65-FM-900 |
|
Suitable material |
PP, PE |
PP, PE |
|
Film width |
100-600mm |
250-800mm |
|
Diameter of Screw |
55mm |
65mm |
|
L/D Ration of Screw |
28:1 |
28:1 |
|
Screw material |
38CrMOLA |
38CrMOLA |
|
Die head diameter |
200mm |
250mm |
|
Temperature control |
4unit |
4unit |
|
Rotational Speed of Screw |
10-100r/min |
10-100r/min |
|
Air ring diameter |
350mm |
350mm |
|
Maximum Output capacity |
20-35kg/h |
30-65kg/h |
|
Single-sided Thickness of Film |
0.009-0.18mm |
0.009-0.18mm |
|
Heating power |
7kw |
7kw |
|
Power of Main Motor |
11kw |
15kw |
|
Cooling fan |
1.1kw |
2.2kw |
|
Traction part |
||
|
Traction roller length |
700mm |
900mm |
|
Traction motor power |
2kw |
2.2kw |
|
Traction speed |
10-80m/min |
10-80m/min |
|
Rewind roller length |
700mm |
900mm |
|
Rewinder part |
||
|
Max. Rewind diameter |
600mm |
800mm |
|
Rewind torque motor |
10N.M |
16N.M |
|
Gross power |
25kw |
32kw |
|
Weight of Machine |
2500kg |
2500kg |
|
Overall Dimensions |
4500×2000×3500mm |
4800×2200×3800mm |
-
